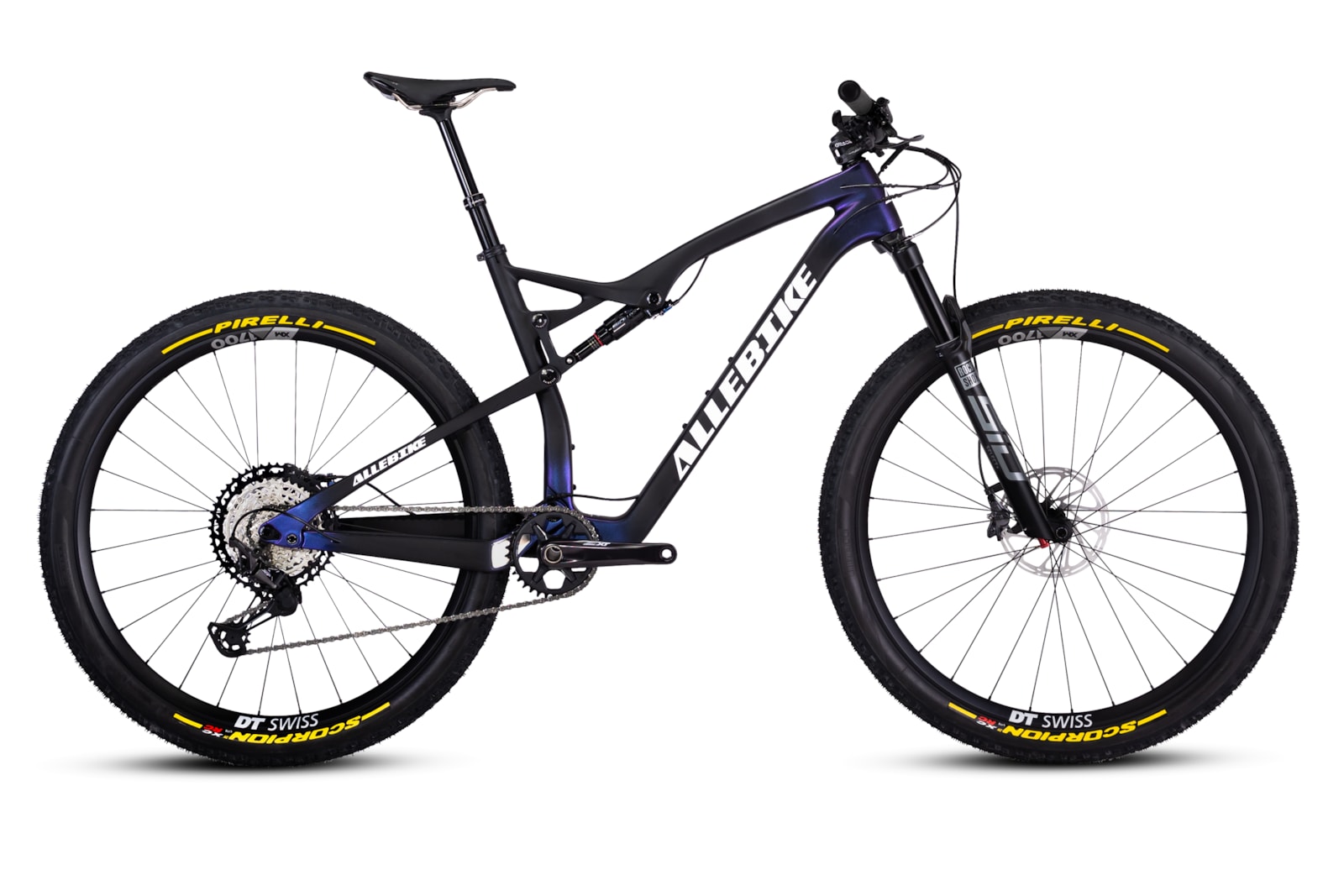

When you want to rediscover the trail, the Alpha XT is the way to do it. Feel confident, dare to find new lines, and enjoy every moment.
As fast as it is fun. With its innovative geometry, the Alpha has paved the way for a new segment that is a perfect blend of XC racing and trail riding. Fly over fast sections and descend with a wide grin and a confident feeling.
Frame
ALLEBIKE ALPHA - Frame and stays made of carbon fiber / Tapered head tube / Threaded bottom bracket / Boost 148 / 116mm travel / Provision for bottle cage S/M 1 , L/XL 2
Fork
ROCKSHOX SID Ultimate - 35 mm chassi, Debon Air-suspension / Oneloc Doubleremote / Tapered headtube / Boost110 / 120mm travel / 44mm offset
Shock
ROCKSHOX SIDLUXE - 116 mm travel / Remote Lockout / Optimized for Alpha / 165 x 45 mm Trunnion
Wheels
DT Swiss XM 1700 Spline
Tyres
Pirelli Scorpion XC RC / 2.4"
Shift Lever
Shimano XT M8100 / 12-speed
Rear Derailleur
Shimano XT M8100 / 12-speed
Crank
Shimano XT M8120 / 34T / Boost
Bottom Bracket
Shimano / Threaded
Cassette
Shimano XT M8100 / 12-speed / 10-51T
Chain
Shimano XT M8100 / 12-speed
Pedals
Purchased separately
Brakes
Shimano XT M8100 - Hydraulic disc brake
Saddle
Vincents Ti
Seatpost
X-Fusion Manic - Cable-actuated dropper post / 30.9mm
Handlebar
FSA Gradient 35/50 - 800 mm, 8° back sweep, 5° up sweep, carbon fiber
Stem
FSA Gradient 35 - 50 mm
Headset
VINCENTS - 1 1/8" / 1,5"
Grips
Vincents
Weight
Size L - approx 12,4 kg
Maximum Weight
This bike has a recommended weight limit of 120kg.
Changes in the technical specifications may occur without prior notice due to final sale & other factors
| S 154 - 165 | M 164 - 177 | L 174 - 187 | XL 182 - 196 | |
| A. Headtube height | 95 | 105 | 120 | 140 |
| B. Toptube length | 574 | 600 | 628 | 659 |
| C. Reach | 432 | 456 | 480 | 505 |
| D. Stack | 579 | 588 | 602 | 620 |
| E. Headtube angle | 65,5° | 65,5° | 65,5° | 65,5° |
| F. Seattube | 400 | 445 | 483 | 540 |
| G. Chainstay length | 438 | 438 | 438 | 438 |
| H. Seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
| I. BB drop | 40 | 40 | 40 | 40 |
| J. Wheelbase | 1170 | 1198 | 1228 | 1261 |
| K. Standover height | ||||
| Fork length | 531 | 531 | 531 | 531 |
All measurements are designated in MM unless otherwise stated.
