Frame

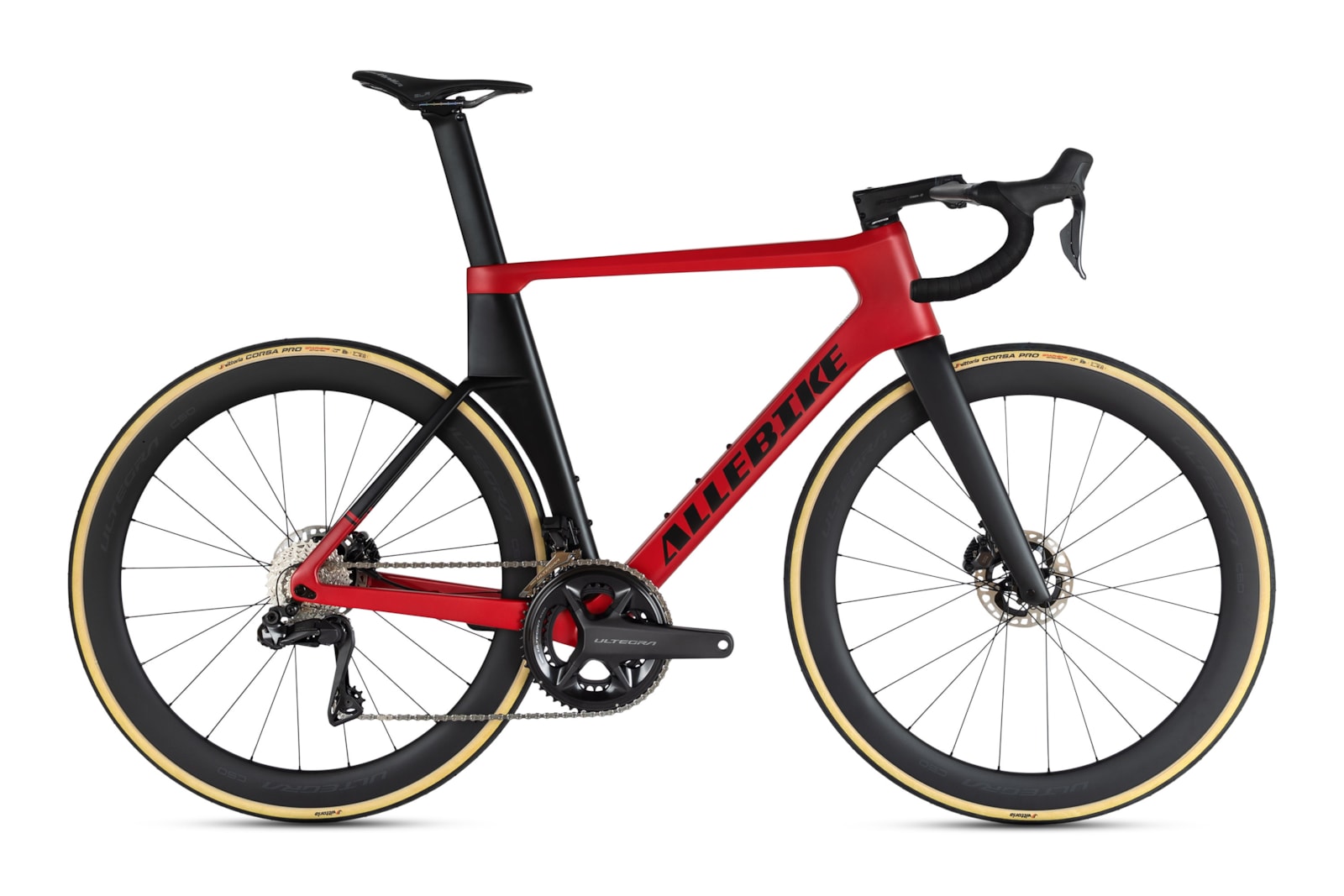

ALLEBIKE ARROW - Frame in carbon fiber / internal cable routing / flat mount disc brake / 12x142mm thru axle / Rebel Red
Fork
ALLE-ARROW / internal routing of brake hose / tapered carbon fiber steerer / Flat mount disc brake / 12x100mm thru axle
Wheel
Shimano WH-R8170-C50 Ultegra / TLR / Carbon fiber / height 50 mm
Tires
Vittoria Corsa Graphene 2.0 / 28 mm
Shift Lever
Shimano Ultegra Di2 / ST-R8170 / 2x12-speed
Rear Derailleur
Shimano Ultegra Di2 / ST-R8170 / 2x12-speed
Crankset
Shimano Ultegra Di2 FC-R8100 / 52/36
Bottom Bracket
Shimano pressfit
Cassette
Shimano Ultegra CS-R8100-12 / 11-30 / 12-speed
Chain
Shimano CN-M8100 / 12-speed
Pedals
Purchased separately
Brakes
Shimano Ultegra BR-R8170 / Hydraulic disc brake
Saddle
Selle Italia SLR Boost Superflow Carbon / 145 mm
Seatpost
ALLE-ARROW
Handlebar
FSA Vision Metron Carbon S-M 40cm L-XL 42cm
Stem
FSA ACR / S-M-L 100mm XL 110mm
Headset
FSA NO.55
Handlebar tape
Vincents black
Weight
Maximum weight
This bike has a recommended maximum weight of approx 120 kg
Please note that changes to the technical specification may occur without warning due to discontinuation of products and other factors. The weight of the bike may vary slightly between different sizes and colors.

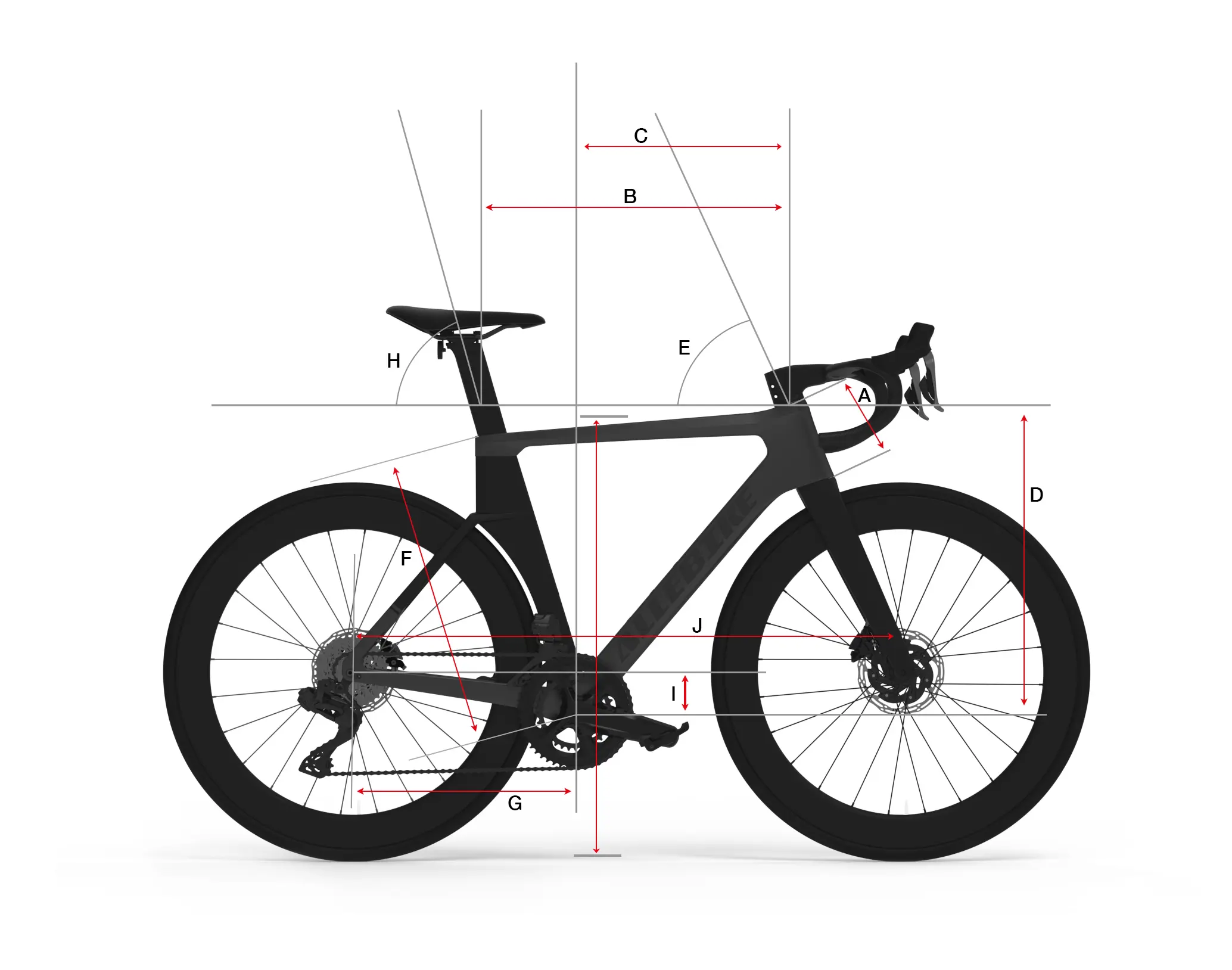

| S 160-175 | M 170 - 180 | L 177 - 187 | XL 185 - 197 | |
| A. Headtube height | 132 | 149 | 168 | 189 |
| B. Toptube length | 527 | 543 | 560 | 580 |
| C. Reach | 374 | 385 | 396 | 412 |
| D. Stack | 534 | 552 | 570 | 590 |
| E. Headtube angle | 72,5° | 72,5° | 72,5° | 72,5° |
| F. Seattube | 498 | 517 | 536 | 554 |
| G. Chainstay length | 405 | 405 | 405 | 405 |
| H. Seattube angöe | 74° | 74° | 74° | 74° |
| I. BB drop | 70 | 70 | 70 | 70 |
| J. Wheelbase | 973 | 984 | 1000 | 1021 |
| Fork length | 370 | 370 | 370 | 370 |
Size recommendation
To find the right size, you can refer to our size chart below. The size recommendations overlap slightly and are only a guide, if you fall in between, you can most likely choose both depending on personal preferences, physique and riding style. If you are unsure of your size, you are welcome to contact us for guidance.
