A big bike in a small package
The MB31 Royal will soon be your best friend on the trails. It's comfortable and sensible on an easy ride but if you start pushing it harder it will change it's demeanor and invite you to some serious riding.
The Royal Junior is a fully grown bike for not fully grown riders, lots of fun and a great way to learn mountainbiking. Plenty of travel at the front absorbs rough terrain and helps you stay in control. Matte black frame with glossy black decals makes for a classy looking bike. And it's just as fun to ride as it is nice to look at. With a massive tire clearance for up to 2,6" you have plenty of options when it comes to different trails and ridestyles.
A rigid and sturdy aluminiumframe with a modern geometry made out of beautiful tubing creates a frame that works well in any situation. The long reach and slack headtube helps you stay in control in steep descents and technical sections.
Specifications
Framekit
Frame
MB31 Junior by Allebike / Tapered head tube / Threaded bottom bracket / Boost148
Fork
ROCKSHOX 35 / Motion Control-dämpning / Oneloc Remote / Tapered steerer tube / Boost110 / 100 mm travel
Wheelset
Wheels
DT Switt 1900 Spline 27,5" / DT Swiss 350 hub / Sapim Race spokes
Tyres
Schwalbe Racing Ralph
Drivetrain
Shift Lever
Shimano Deore M6100 / 12-speed
Rear Derailleur
Shimano Deore M6100 / 12-speed
Crank
Shimano Deore M6100 / 170mm
Bottom Bracket
Shimano BSA - Threaded 37/24
Cassette
Shimano Deore M6100 / 12-speed
Chain
Shimano Deore M6100 / 12-speed
Components
Brakes
Shimano Deore M6100 / Hydraulic disc brake
Saddle
Vincents Ti
Seatpost
Vincents AL / 30,9mm
Handlebar
FSA Afterburner Alu
Stem
FSA SL-K / 60mm
Headset
Vincents - 1 1/8" / 1,5"
Grips
Vincents

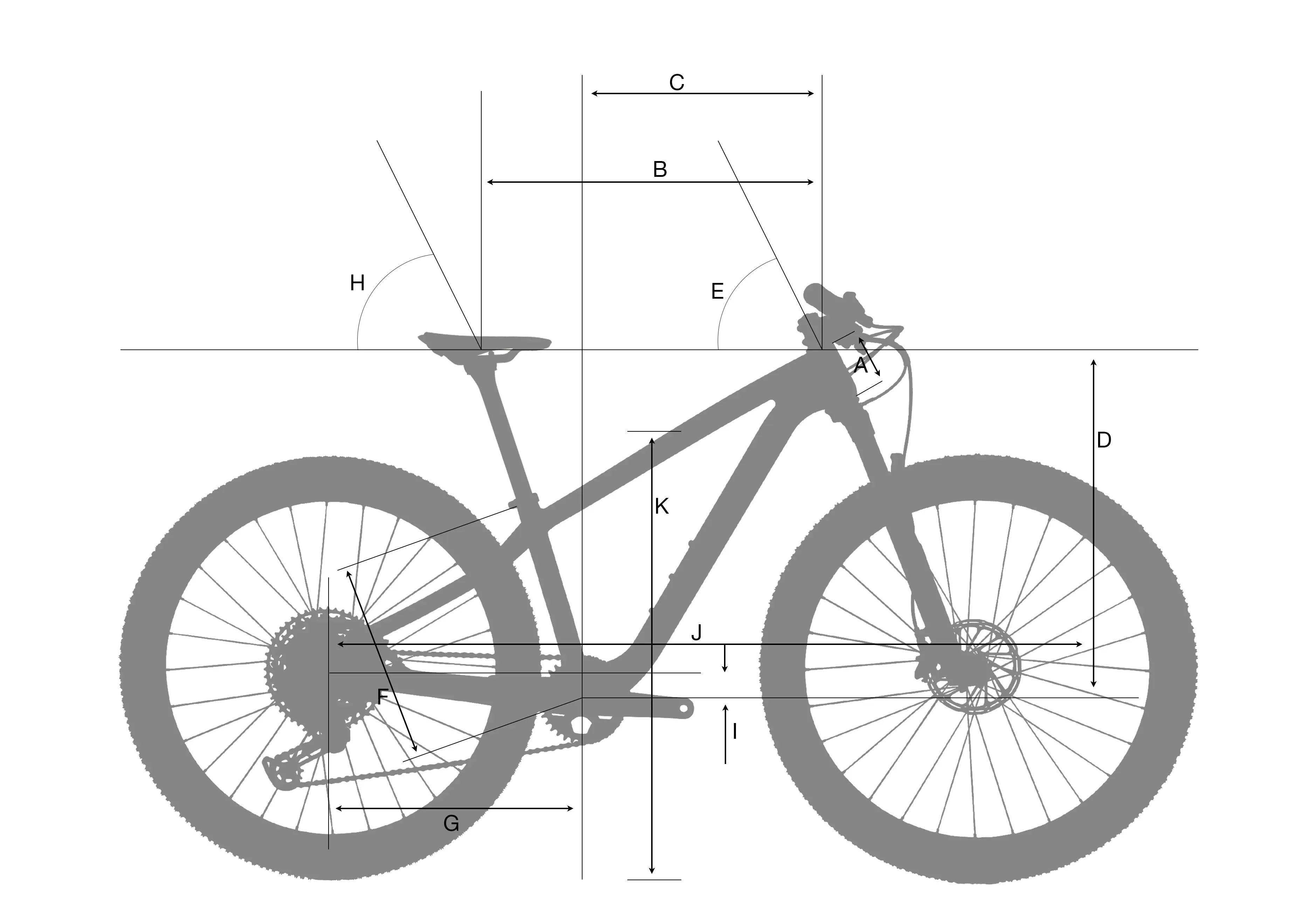

| XS 130 - 150 | |
| A. Styrhuvudets höjd | 100 |
| B. Effektiv längd överrör | 524 |
| C. Reach | 379 |
| D. Stack | 560 |
| E. Styrhuvudets vinkel | 65,5° |
| F. Sadelstolpsrör | 343 |
| G. Kedjestagslängd | 426 |
| H. Sadelrörets vinkel | 75,5° |
| I. BB drop | 45 |
| J. Hjulbas | 1087 |
| K. Gaffellängd | 485 |
