Competition, adventure, and everything in between. Whether you're on the starting line against the world elite, or zipping along your favorite gravel roads mile after mile, Rocket is ready to give you everything.
With a geometry optimized for modern and aggressive riding, and a fork angle of 70°, you get both agility as well as stability and comfort all in a well-designed package. Now updated with UDH derailleur hanger and room for up to 50 mm wide tires.
Experience the ultimate control and uninterrupted enjoyment on your next gravel ride with Shimano GRX 1x12 speed. Its gravel-specific ergonomics and whisper-quiet shifting ensure you always have complete control and focus on the ride. Choose GRX for its robust reliability, precision, and unrivaled performance, and unlock new possibilities while exploring the gravel roads like never before.
Developed and assembled with 100% dedication and love at our bicycle factory in Alingsås, Sweden.

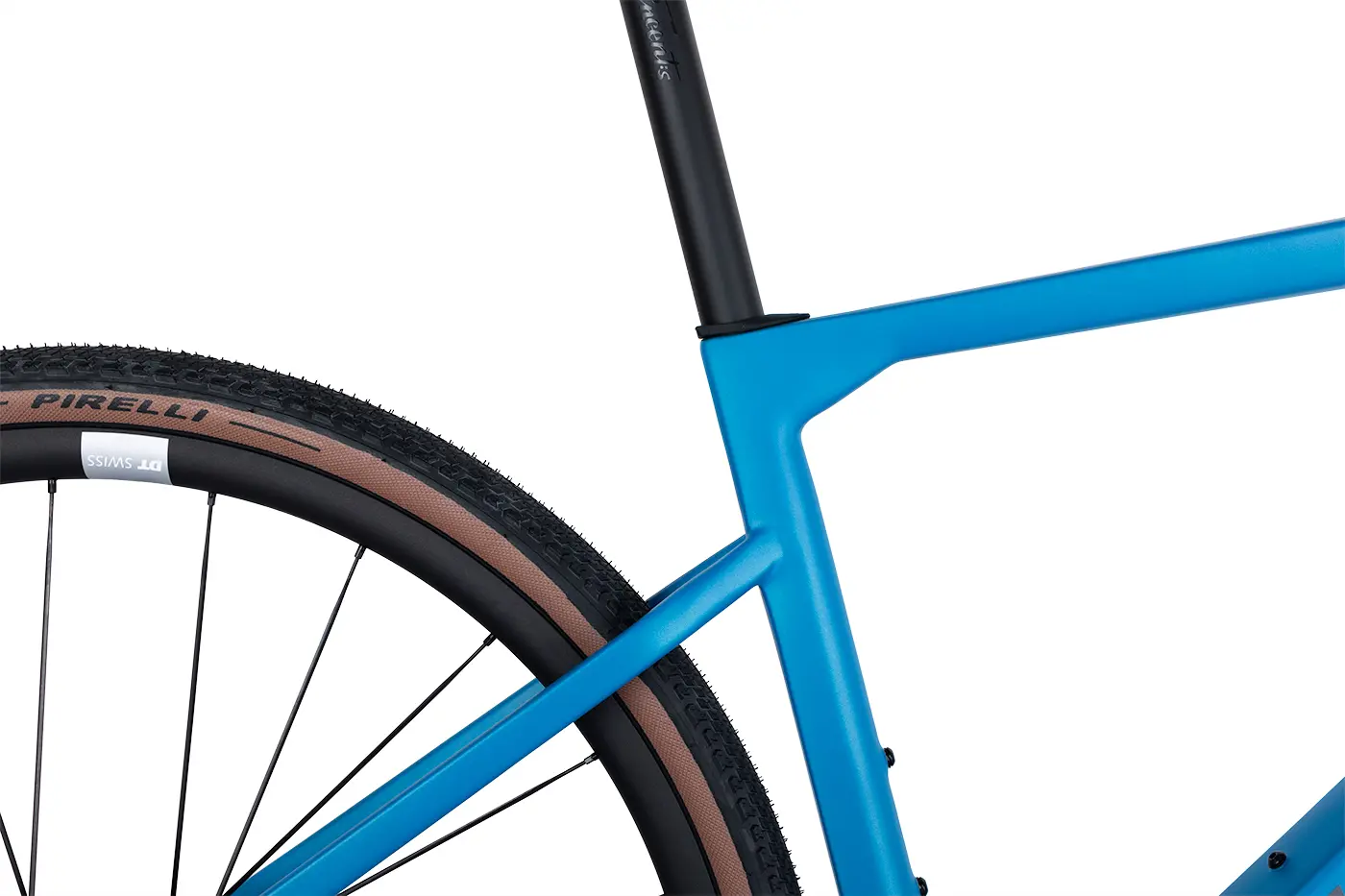

The updated tire clearance with room for up to 50 mm wide tires contributes to additional stability and comfort on varying terrain.
Headset/
headtube
Integrated (IS42/52)
Seattube
30,9 mm
Seatpost
clamp
Integrated
Maximum tire
width
50 mm
Bottom bracket
standard
68 mm, threaded
Maximum
chainring size
44T
Derailleur
hanger
UDH / Universal derailleur hanger
Dropperpost
compatibility
Yes
Material
Carbon fiber
Wheelsize
700C
Frame
ALLEBIKE ROCKET - Blue Lagoon / Frame in carbon fiber / internal cable routing / flat mount discbrake / 12 x 142 mm trough axle
Fork
ALLE-ROCK-GR - internal routing of brake hose / tapered carbon fiber steerer / flat mount disc brake / 12 x 100 mm trough axle
Wheels
DT Swiss GR 1600 Spline / DT 350 nav / DT aero comp wide straightp spokes
Tires
Pirelli Cinturato Gravel H Classic Techwall speedgrip / 700x40c
Shift Lever
Shimano GRX BL-RX610 / 1x12-speed
Rear Derailleur
Shimano GRX RD-RX822 / 12-speed
Crank
Shimano GRX FC-RX610 / 172,5 mm / 40 T
Bottom Bracket
Shimano threaded
Cassette
Shimano SLX CS-M7100 / 10-45 / 12-speed
Chain
Shimano CN-M7100 / 12-speed
Pedals
Purchased separately
Brakes
Shimano GRX BR-RX400 / hydraulic disc brake / SM-RT70 140 mm brake discs
Saddle
Vincents Evo Ti
Seatpost
VINCENTS CF - 30.9 mm / 400 mm / 0 mm offset
Handlebar
FSA A-Wing / S-M 42 cm / L-XL 44 cm
Stem
FSA SL-K 70mm / S-M 70 mm / L-XL 80 mm
Headset
VINCENTS - 1 1/8" / 1,5"
Grips
Vincents
Weight
Approx 8,9 kg (size M)
Maximum weight
This bike has a recommended weight limit of 120 kg
Please note that changes to the technical specifications may occur without warning due to the discontinuation of product and other factors.
The weight of the bicycle may vary slightly between different sizes and colors.
| S 158 - 170 | M 170 - 180 | L 178 - 188 | XL 186 - 196 | |
| A. Headtube height | 121 | 154 | 190 | 231 |
| B. Toptube length | 557 | 578 | 591 | 612 |
| C. Reach | 403 | 415 | 418 | 428 |
| D. Stack | 538 | 569 | 603 | 641 |
| E. Headtube angle | 70° | 70° | 70° | 70° |
| F. Seattube | 431 | 459 | 492 | 527 |
| G. Chainstay length | 420 | 420 | 420 | 420 |
| H. Seattube angle | 74° | 74° | 74° | 74° |
| I. BB drop | 69 | 69 | 69 | 69 |
| J. Wheelbase | 1041 | 1064 | 1080 | 1103 |
| K. Standover height | ||||
| Fork length | 395 | 395 | 395 | 395 |
All measurements are expressed in millimeters (mm) unless otherwise is specified.
Size recommendations
To find the right size, you can use our size chart below. The size recommendations overlap slightly, so if you fall in between, you can most likely choose either depending on personal preferences, body type, and riding style. If you are unsure about your size, please feel free to contact us for guidance and a test ride!
