Frame

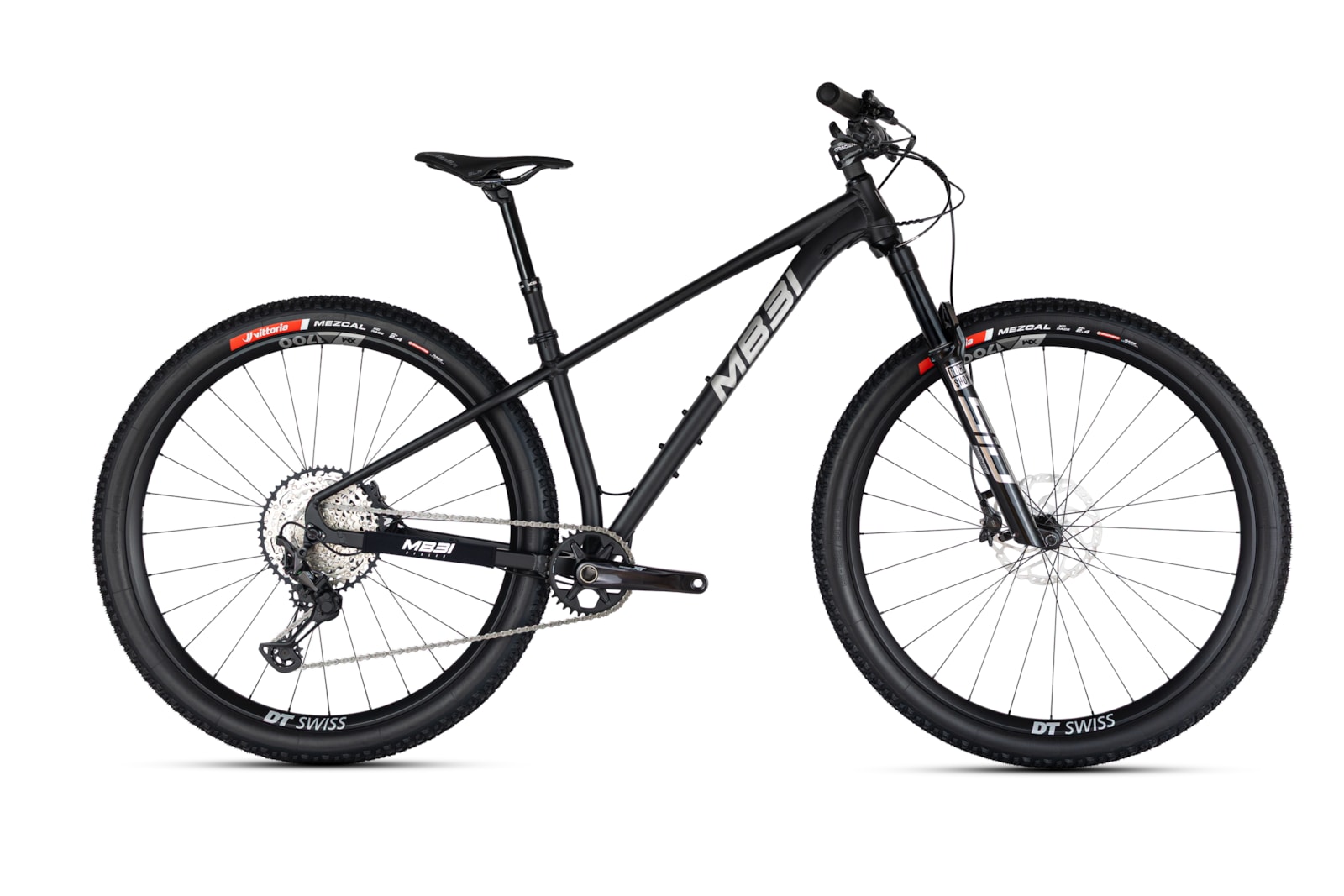

MB31 Rescue - Aluminum, tapered head tube, threaded bottom bracket, Boost 148, space for 2 bottle cages
Fork
RockShox Sid Ultimate / 120 mm
Wheels
DT Swiss XM 1700
Tires
Vittoria Mezcal 2,4"
Shifters
Shimano XT M8100 / 12-speed
Derailleur
Shimano XT M8100 / 12-speed
Crank
Shimano XT / 34T
Bottom Bracket
Shimano threaded
Cassette
Shimano XT M8100 / 10-51T / 12-speed
Chain
Shimano XT M8100 / 12-speed
Pedals
Purchased Separately
Brakes
Shimano XT M8100 - Hydraulic discbrake
Saddle
Selle Italia SLR
Seatpost
KS Dropperpost
Handlebar
FSA Comet / 800mm
Stem
FSA Gradient / 50mm
Headset
VINCENTS - 1 1/8", Over/ 1,5" Under
Grips
Vincents
Weight approx 12,1 kg (Size L, with tubes)
Maxmimum Weight
This bike has a maximum weight of 120kg
Changes to the technical specification may occur without notice due to final sales & other factors..
| S 154 - 165 | M 162 - 175 | L 172 - 184 | XL 180 - 195 | |
| A. Head Tube Length | 100 | 110 | 120 | 130 |
| B. Effective Top Tube Length | 584 | 611 | 634 | 662 |
| C. Reach | 423 | 448 | 468 | 493 |
| D. Stack | 623 | 632 | 641 | 650 |
| E. Head Tube Angle | 65,5° | 65,5° | 65,5° | 65,5° |
| F. Seat Tube Length | 380 | 405 | 430 | 460 |
| G. Chainstay Length | 430 | 430 | 430 | 430 |
| H. Seat Tube Angle | 75,5° | 75,5° | 75,5° | 75,5° |
| I. BB drop | 55 | 55 | 55 | 55 |
| J. Wheelbase | 1154 | 1183 | 1207 | 1237 |
| K. Standover height | ||||
| Fork Length | 540 | 540 | 540 | 540 |
All measurements are in MM unless otherwise stated. The geometry chart is calculated based on a fork with an AC measurement of 540 mm.
