It all started with a dream, a passion, and a dedicated group of racing enthusiasts.
A burning desire to create something exceptional, to raise the bar and deliver a bike that not only meets expectations but inspires greatness. That’s how the Allebike Excalibur was born – an adrenaline rush in carbon form, ready to unleash the feeling of boundless freedom.
Designed in Sweden and manufactured in Europe using advanced monocoque technology, it represents the culmination of meticulous design and uncompromising craftsmanship.
Monocoque means the entire frame is formed as a single unit. This gives us a unique opportunity to fine-tune the frame’s characteristics and optimize material usage to achieve an exceptional balance of torsional stiffness, weight, and vibration damping.
With great care, we have combined different carbon fiber materials to create a frame where both performance and aesthetics take center stage, and where every line works in perfect harmony. Inspired by Scandinavian simplicity and elegance, we highlight the inherent beauty of the materials in an uncompromising carbon fiber look that signals racing performance.

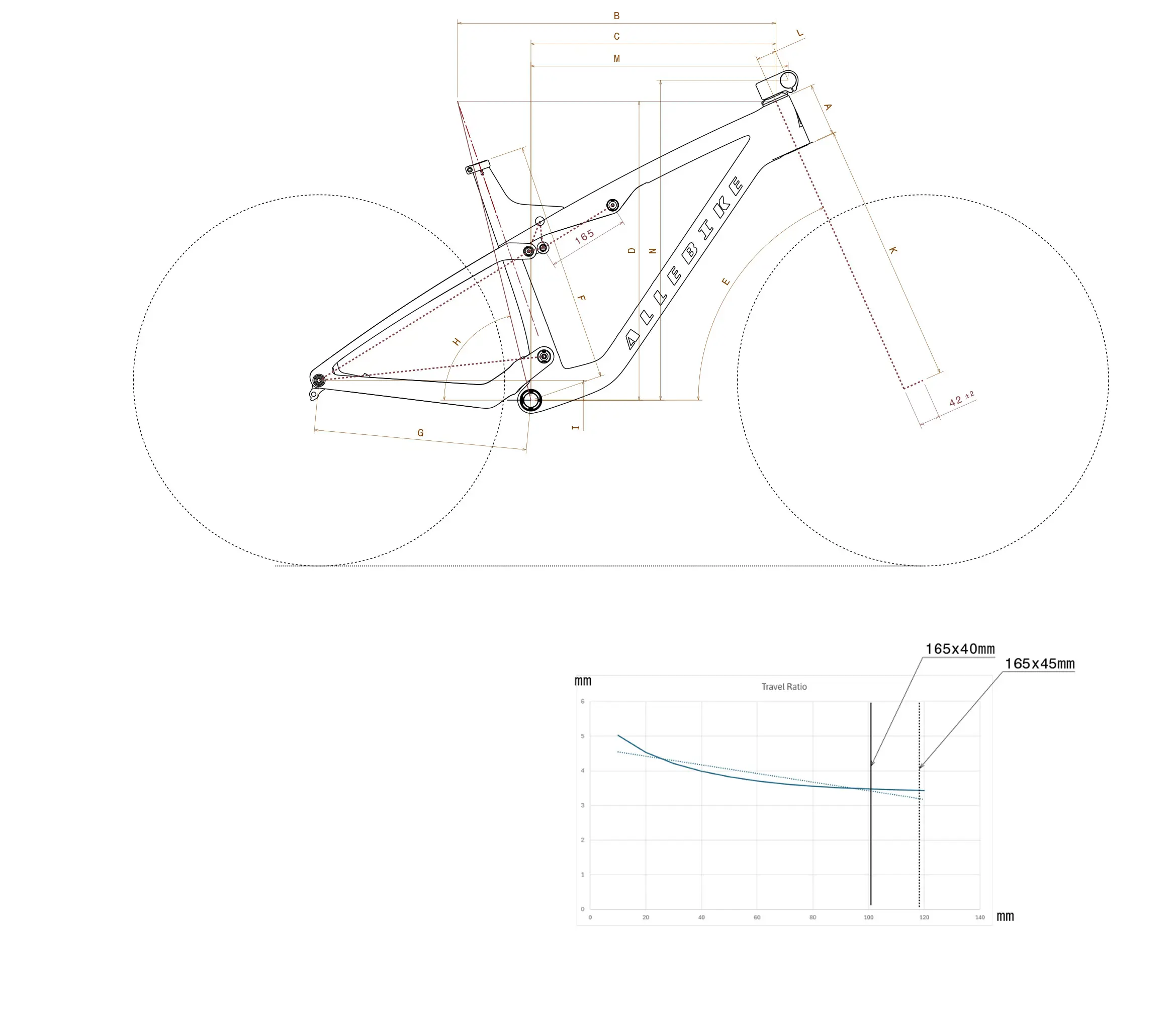

| S 155-167 | M 165 - 177 | L 175 - 187 | XL 185 - 196 | |
| A. Headtube height | 88 | 88 | 106 | 106 |
| B. Toptube length | 604 | 604 | 643 | 643 |
| C. Reach | 461 | 461 | 495 | 495 |
| D. Stack | 588 | 588 | 604 | 604 |
| E. Headtube angle | 66° | 66° | 66° | 66° |
| F. Seattube | 440 | 440 | 490 | 490 |
| G. Chainstay length | 430 | 430 | 430 | 430 |
| H. Settube angle | 76,3° | 76,3° | 76,2° | 76,2° |
| I. BB drop | 40 | 40 | 40 | 40 |
| J. Wheelbase | 1179 | 1179 | 1220 | 1220 |
| K. Fork length | 530 | 530 | 530 | 530 |
| L. Stem length | 40 | 60 | 40 | 60 |
| M. IRL Reach | 486 | 504 | 520 | 538 |
| N. IRL Stack | 630 | 638 | 646 | 654 |
All mesaurements are designated in MM unless otherwise stated.
