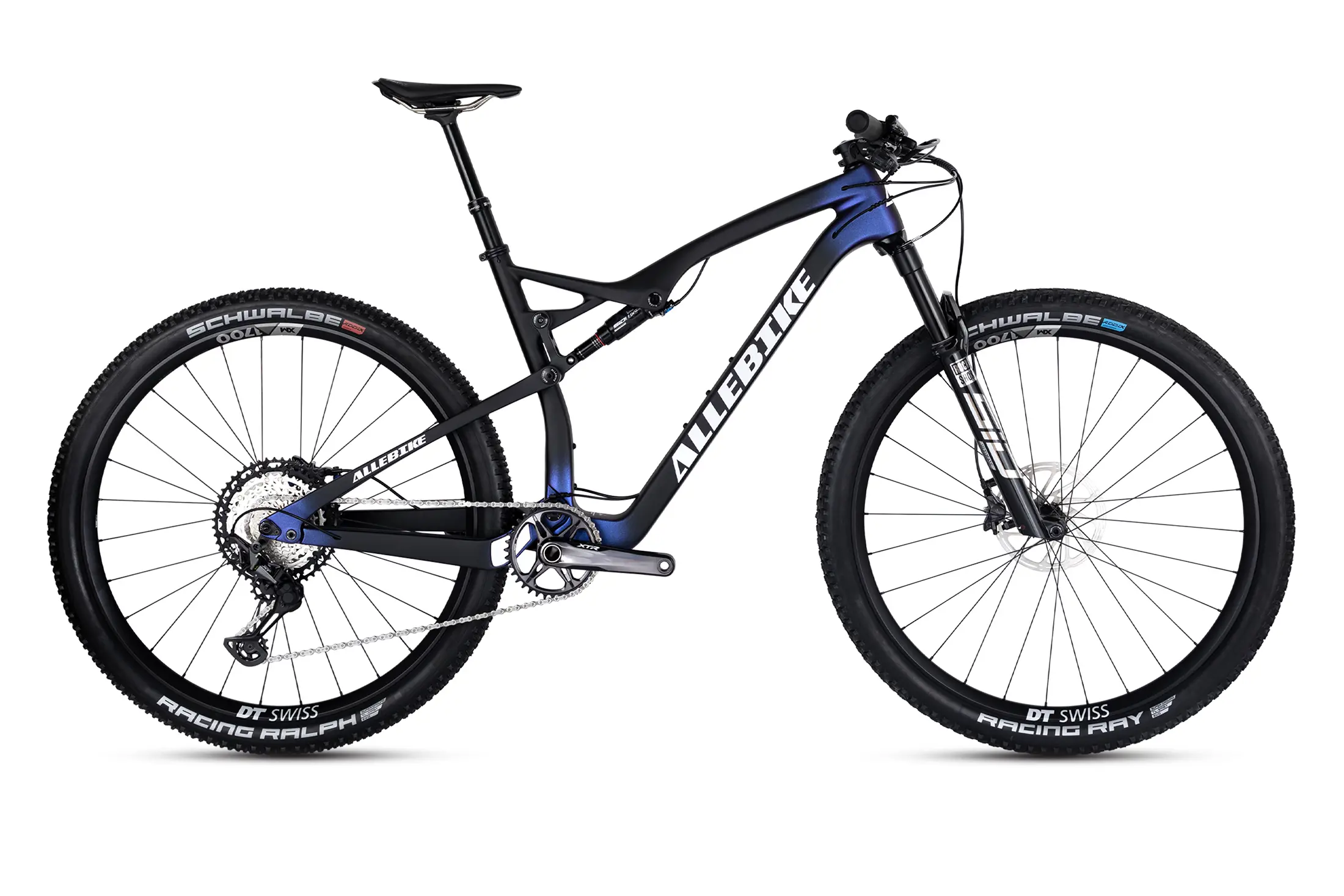

When you want to rediscover the trail, the Alpha is the right way to do it. Feel confident, dare to find new lines, and enjoy every moment. With a narrower handlebar, XC-specific tires, and 110mm travel on the front fork, you have a bike that's as fast as it is fun. Whether you're racing XCO, taking on endurance mountain biking, or chasing your own personal records.
Frame
ALLEBIKE ALPHA - Frame and stays made of carbon fiber / Tapered head tube / Threaded bottom bracket / Boost 148 / 116mm travel / Provision for bottle cage S/M 1 , L/XL 2
Fork
ROCKSHOX SID Ultimate - Debon Air-suspension, Oneloc Doubleremote, Boost 110, 110 mm travel, 44mm offset
Shock
ROCKSHOX SIDLuxe - Oneloc Doubleremote, 165 x 40 mm Trunion
Wheels
DT Swiss XRC 1700 Spline
Tires
Schwalbe Racing Ray/ Racing Ralph 2.35" / Tubeless
Shift Lever
Shimano XT M8100 / 12-speed
Rear Derailleur
Shimano XT M8100 / 12-speed
Crank
Shimano XTR M9120 / 34T / 170 mm (S/M) / 175 mm (L/XL)
Bottom Bracket
Shimano - Threaded
Cassette
Shimano XT M8100 / 12-speed / 10-51T
Chain
Shimano XT M8100 / 12-speed
Pedals
Purchased separately (we recommend Shimano XT/ XTR)
Brakes
Shimano XT Hydraulic disc brakes / SRAM CLX 180/160 mm
Saddle
Vincents Ti
Seatpost
X-Fusion Manic - Cable-actuated dropperpost, 30.9 mm
Handlebar
FSA KFX / 760 width / 31,8 / 9° back sweep / 4° up sweep
Stem
FSA SL-K / 70mm
Headset
VINCENTS - 1 1/8", Övre / 1,5" nedre
Grips
Vincents
Weight
Ca 11,5 kg (Size L, tubeless)
Maximum weight
This bike has a recommended weight limit of 120kg.
| S 154 - 165 | M 164 - 177 | L 174 - 187 | XL 182 - 196 | |
| A. Headtube height | 95 | 105 | 120 | 140 |
| B. Toptube length | 574 | 600 | 628 | 659 |
| C. Reach | 432 | 456 | 480 | 505 |
| D. Stack | 579 | 588 | 602 | 620 |
| E. Headtube angle | 65,5° | 65,5° | 65,5° | 65,5° |
| F. Seattube | 400 | 445 | 483 | 540 |
| G. Chainstay length | 438 | 438 | 438 | 438 |
| H. Seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
| I. BB drop | 40 | 40 | 40 | 40 |
| J. Wheelbase | 1170 | 1198 | 1228 | 1261 |
| K. Standover height | ||||
| Fork length | 531 | 531 | 531 | 531 |
All measurements are designated in MM unless otherwise stated.
