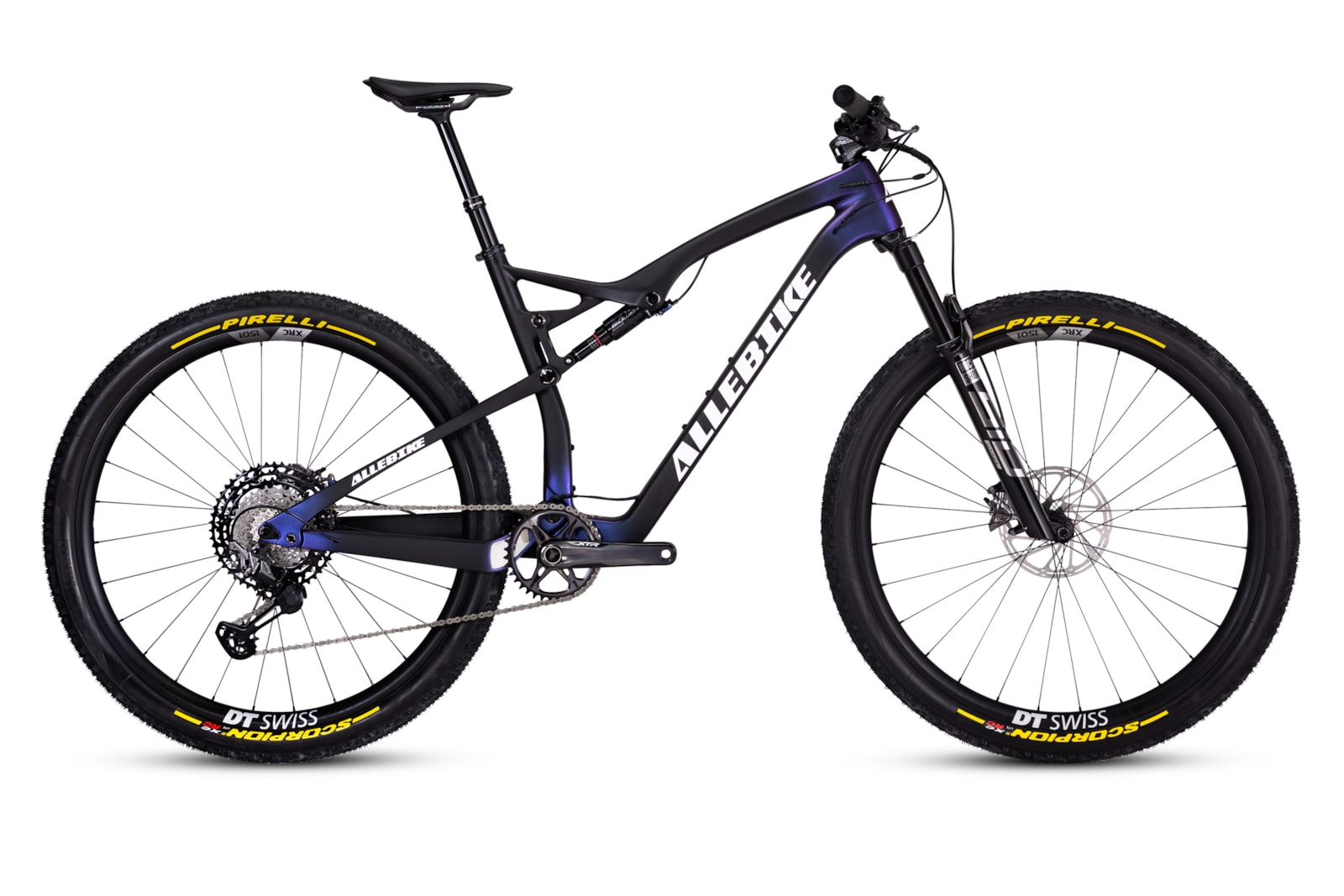

Challenge yourself with the Alpha XTR. The trails feel lighter, the jumps are higher, and you have greater freedom and full control with the push of a button on the dropper post in the downhill section.
As fast as it is fun. With its innovative geometry, the Alpha has paved the way for a new segment that is a perfect blend of XC racing and trail riding. Fly over fast sections and descend with a wide grin and a confident feeling.
Frame
ALLEBIKE ALPHA - Frame and stays made of carbon fiber / Tapered head tube / Threaded bottom bracket / Boost148 / 116 mm travel
Provision for bottle cages: S/M 1 st, L/XL 2 st
Fork
ROCKSHOX SID Ultimate - 35 mm chassi, Debon Air-suspension / Oneloc Doubleremote / Tapered headtube / Boost110 / 120mm travel / 44mm offset
Shock
ROCKSHOX SIDLUXE - 116mm travel / Remote Lockout / Optimized for Alpha / 165 x 45 mm Trunnion
Wheels
DT Swiss XRC 1501 Spline One / 30mm carbon fibre / 240 nav / DT Competition race / straightp ekrar
Tyres
Pirelli Scorpion XC RC / 2.4"
Shift Lever
Shimano XTR M9100 / 12-speed
Rear Derailleur
Shimano XTR M9100 / 12-speed
Crank
Shimano XTR M9120 / 36T / Boost
Bottom Bracket
Shimano - Threaded
Cassette
Shimano XTR M9100 / 12-speed / 10-51T
Chain
Shimano XT M9100 / 12-speed
Pedals
Purchased separately
Brakes
Shimano XTR M9100 - Hydraulic disc brake
Saddle
Vincents CF
Seatpost
X-Fusion Manic - Cable-actuated dropper post / 30.9mm
Handlebar
FSA Gradient 35/50 - 800 mm, 8° back sweep, 5° up sweep, kolfiber
Stem
FSA Gradient 35 - 50 mm
Headset
VINCENTS - 1 1/8"/ 1,5"
Grips
Vincents
Weight
Size L - Approx 11,2 kg
Maximum Weight
This bike has a recommended weight limit of 120kg.
Changes in the technical specifications may occur without prior notice due to final sale & other factors
| S 154 - 165 | M 164 - 177 | L 174 - 187 | XL 182 - 196 | |
| A. Headtube height | 95 | 105 | 120 | 140 |
| B. Toptube length | 574 | 600 | 628 | 659 |
| C. Reach | 432 | 456 | 480 | 505 |
| D. Stack | 579 | 588 | 602 | 620 |
| E. Headtube angle | 65,5° | 65,5° | 65,5° | 65,5° |
| F. Seattube | 400 | 445 | 483 | 540 |
| G. Chainstay length | 438 | 438 | 438 | 438 |
| H. Seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
| I. BB drop | 40 | 40 | 40 | 40 |
| J. Wheelbase | 1170 | 1198 | 1228 | 1261 |
| K. Standover height | ||||
| Fork length | 531 | 531 | 531 | 531 |
All measurements are designated in MM unless otherwise stated.
