Never settle, because we certainly don't. This is why the new Allebike Arrow is as close to perfection as you can get - a little faster, a little better. Combining aerodynamics, lightness, responsiveness, and comfort in a single bike is no longer just a dream, thanks to the expertise of our dedicated engineers and our long-standing passion for racing. The new Arrow performs in all areas, best when it matters, wherever it matters.

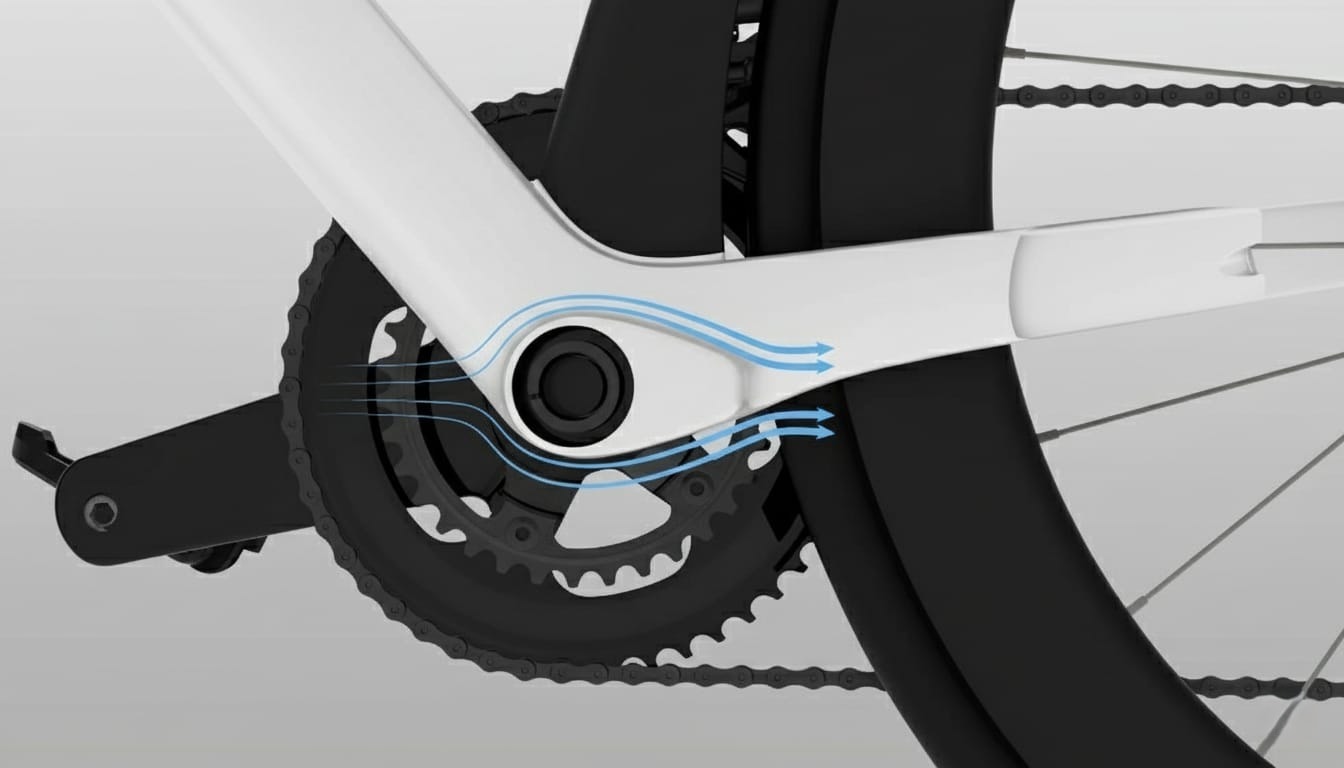

Every detail has been tailored to give you the absolute best conditions on the race track - the unique design around the bottom bracket is one of these refinements.

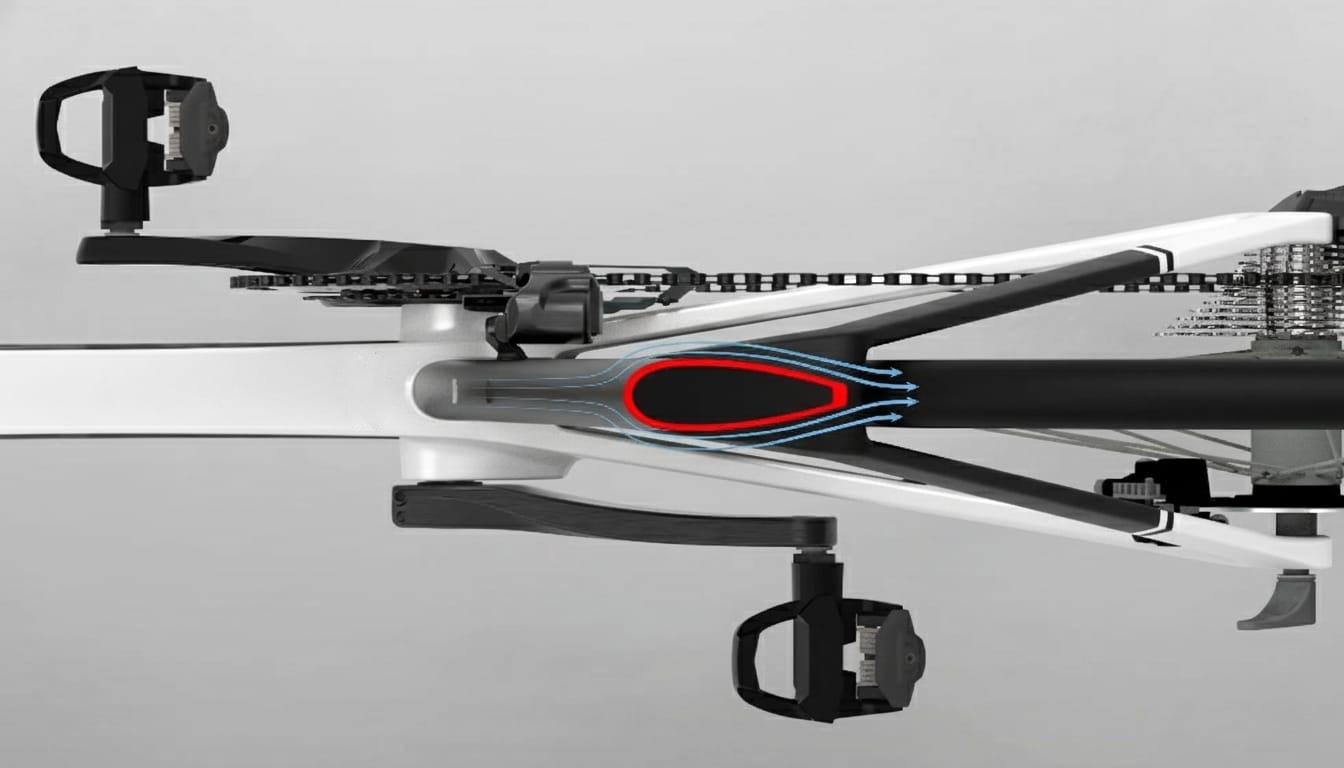

All sections are optimized for reduced air resistance, because we know that victories are determined by small margins.
THE SILENT REVOLUTION OF SPEED.
In the pursuit of speed, you face many obstacles, but one overshadows all others: air resistance. By taming air resistance, we open the door to a new world of speed experiences. Suddenly, you find yourself flying forward at higher speeds with less effort.
CFRP - Carbon fibre
Aerodynamic and stiff
Rebel Red
33 mm
Shimano Dura-Ace Di2
New Vision Metron 60 SL
Approx. 7.3 kg size L
UCI Approved
FRAME AND FORK.
The frame and fork have been designed with a tapered profile shape to ensure that airflow remains stable across a range of critical angles. This unique design feature not only improves the bike's overall efficiency but also adds a dynamic element to its performance, all for an extraordinary riding experience.
100% Performance Focus. Shimano's most advanced drivetrain ever, ready to revolutionize road cycling. Climb, sprint, and push boundaries with a responsive, fast, and precise shifting.
Tested and approved by UCI, ready for the international racing scene and manufactured according to all the rules of the art.
Hand-built wheels made with Vision's most advanced carbon fiber technology, cutting-edge manufacturing processes, and a generous dose of love and passion. Extensive CFD analysis and wind tunnel testing ensure optimal aerodynamics. The new PRS hub system with helical clutch ratchet and 72T increases durability while reducing power loss under load.

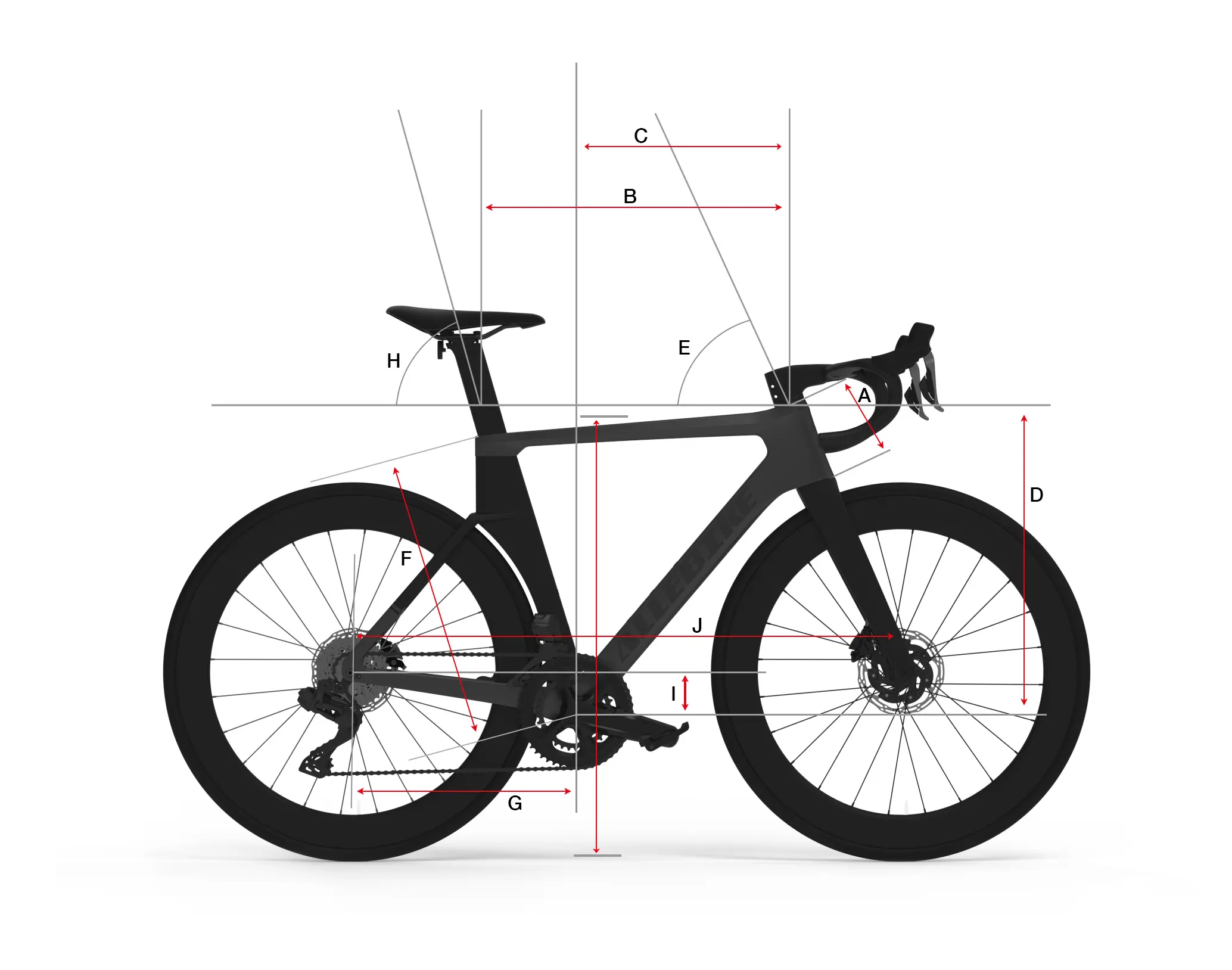

| S 160-175 | M 170 - 180 | L 177 - 187 | XL 185 - 197 | |
| A. Headtube height | 132 | 149 | 168 | 189 |
| B. Toptube length | 527 | 543 | 560 | 580 |
| C. Reach | 374 | 385 | 396 | 412 |
| D. Stack | 534 | 552 | 570 | 590 |
| E. Headtube angle | 72,5° | 72,5° | 72,5° | 72,5° |
| F. Seattube | 498 | 517 | 536 | 554 |
| G. Chainstay length | 405 | 405 | 405 | 405 |
| H. Seattube angöe | 74° | 74° | 74° | 74° |
| I. BB drop | 70 | 70 | 70 | 70 |
| J. Wheelbase | 973 | 984 | 1000 | 1021 |
| Fork length | 370 | 370 | 370 | 370 |
Size recommendation
To find the right size, you can refer to our size chart below. The size recommendations overlap slightly and are only a guide, if you fall in between, you can most likely choose both depending on personal preferences, physique and riding style. If you are unsure of your size, you are welcome to contact us for guidance.
