Elize Polestar Engineered

95 000 SEK

RULE THE TRAILS

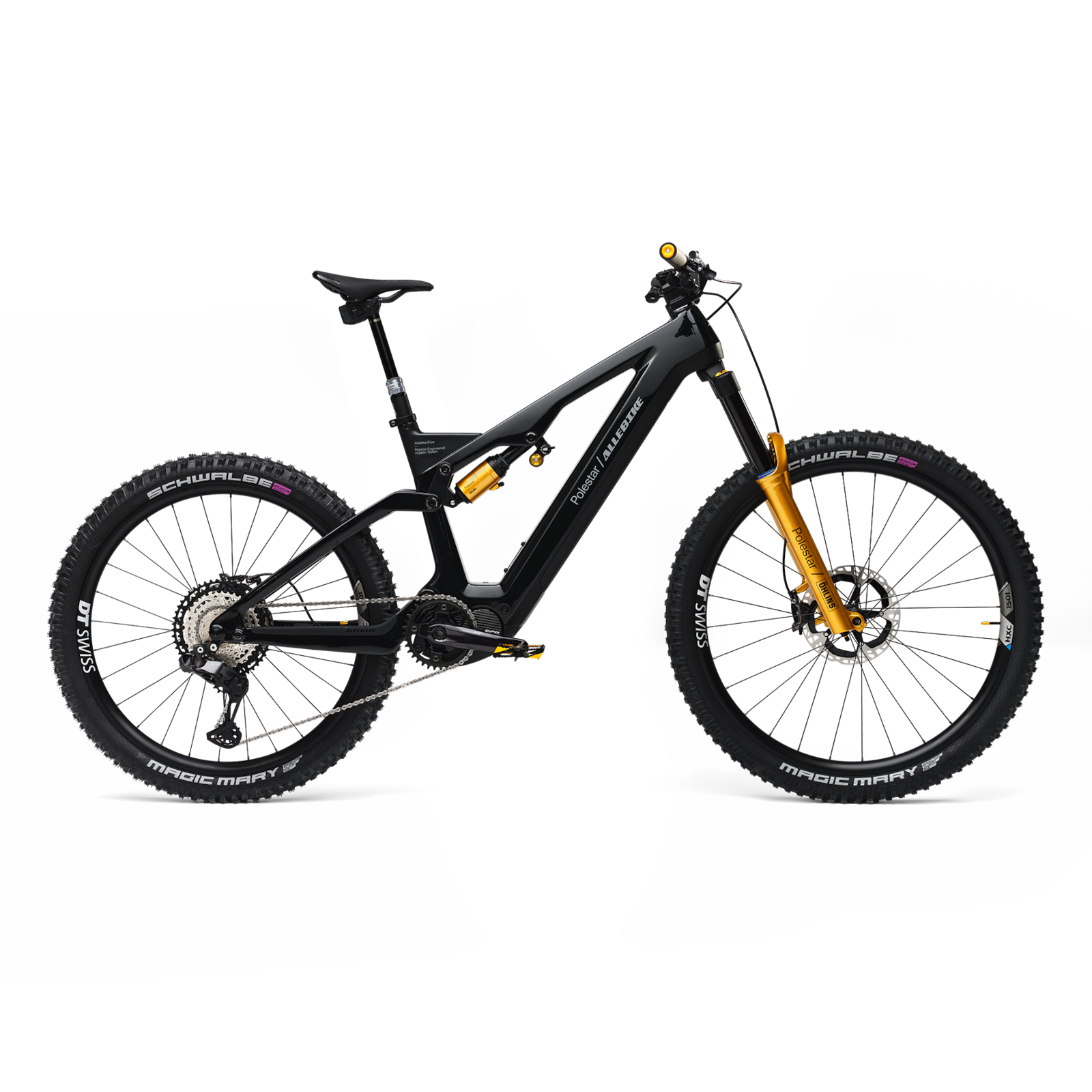

Introducing the Elize Polestar Engineered: Where Power Meets Precision

Brace yourself for the ultimate ride. This trail-crushing beast conquers uphills and dominates downhills with ease. Powered by the mighty Shimano EP 8-85Nm motor, equipped with top-tier Shimano XT components, and cushioned by Öhlins suspension, the Elize Polestar is your ticket to two-wheeled supremacy.

Specifications

Framekit

Frame

Allebike Elize Polestar Engineered - Space / Full carbon / 1 bottle fixations / Size M/L 170-190 cm

Fork

Öhlins RXF38 m.2 29" Air 170 mm travel - Polestar edition

Rearshock

Öhlins TTX2Air, 160 mm travel, tuned for Elize - Polestar edition

Wheelset

Wheels

DT Swiss HXC 1501 Spline One / 30 mm / Carbon / DT Swiss 240 hub

Tires

Schwalbe Magic Mary 29/27,5" x 2,4"

Components

Gear shifter

Shimano XT M8150 / 12-speed

Rear Derailleur

Shimano XT M8150 / 12-speed / Electronic shiftning

Crankset

FC-EM 900 AXL 165 mm - 36T

Cassette

Shimano XT M8100 / 12-speed / 10-51T

Chain

Shimano XT M8100 / 12-speed

Pedals

Purchased separately

Components

Brakes

Shimano XTR M9120 - 203 mm / 180 mm

Saddle

Vincents Evo Race CF

Seatpost

Rockshox Reverb AXS  - 170 mm drop / Wireless remote / 34,9 mm

Handlebar

PRO Koryak E-Performance Carbon / 800 mm width

Stem

35 mm

Headset

VINCENTS - 1 1/8" / 1,5"

Grips

Vincents

Other

Weight

Approx 22,8kg

Maximum weight

This bike has a recommended maximum weight of 120 kg


Please note that, based on component availability and other factors, specifications are subject to change.



Frame sizeM/L 170 - 190 cm
A. Headtube height118
B. Toptube length625
C. Reach480
D. Stack642
E. Headtube angle64,3°
F. Seattube435
G. Chainstay length442
H. Effective seattube angle77,5°
I. BB height347
J. Wheelbase1265
K. Fork length585
L. Standover height746

All measurements are expressed in millimeters (mm) unless otherwise specified.
