Stride up your favorite mountain and then hurl yourself down full of confidence with the knowledge that your bike is at least as ready as you are. Should you against all odds stand there on the edge and hesitate, we can remind you that the Discovery is equipped with stout 29" wheels, 130mm of travel front and back, and a slack head angle of 65°. So stop hesitating - the challenge awaits you.

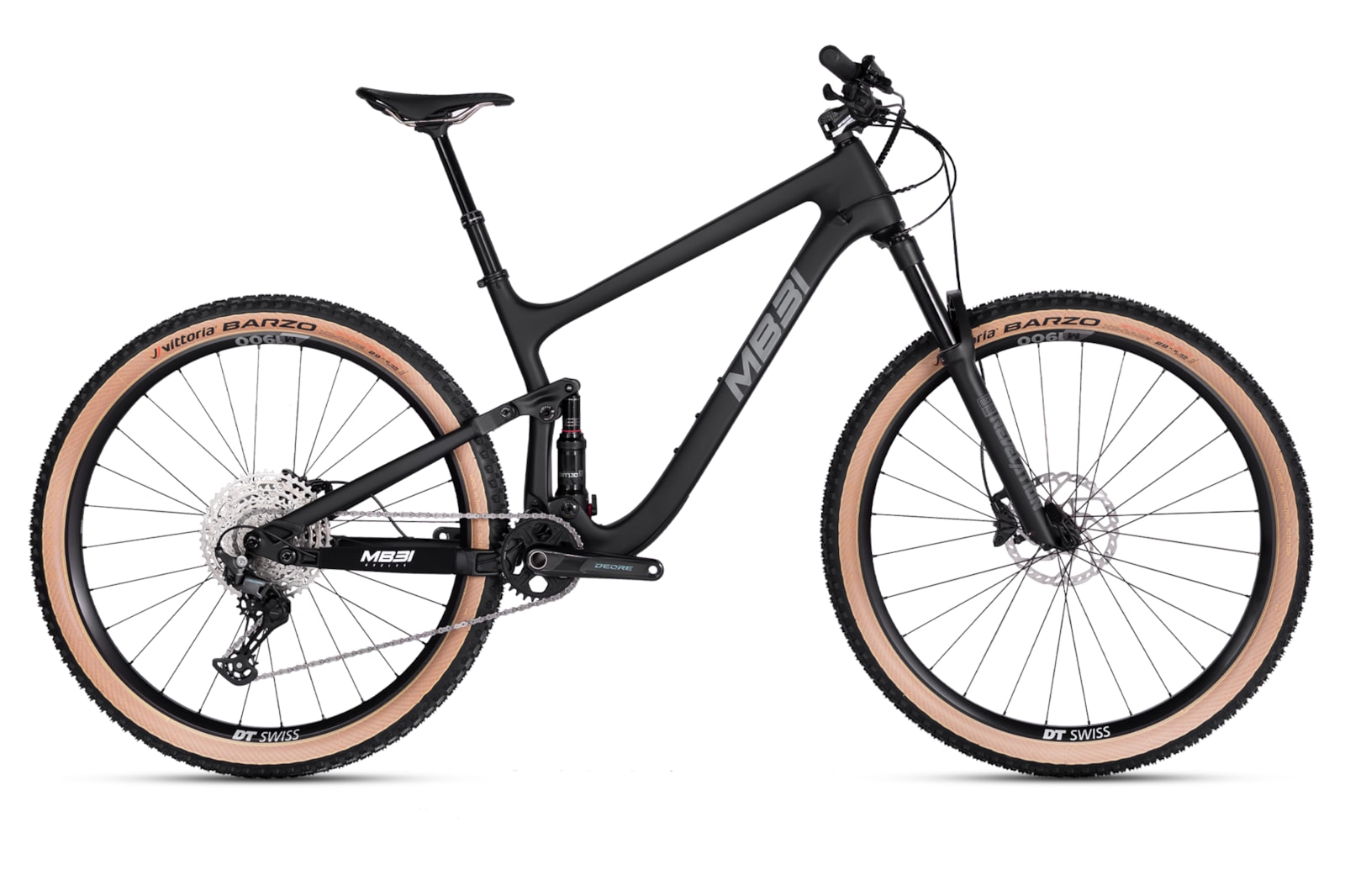

MB31 Discovery is equipped with a carbon fiber front triangle and aluminium rear triangle.

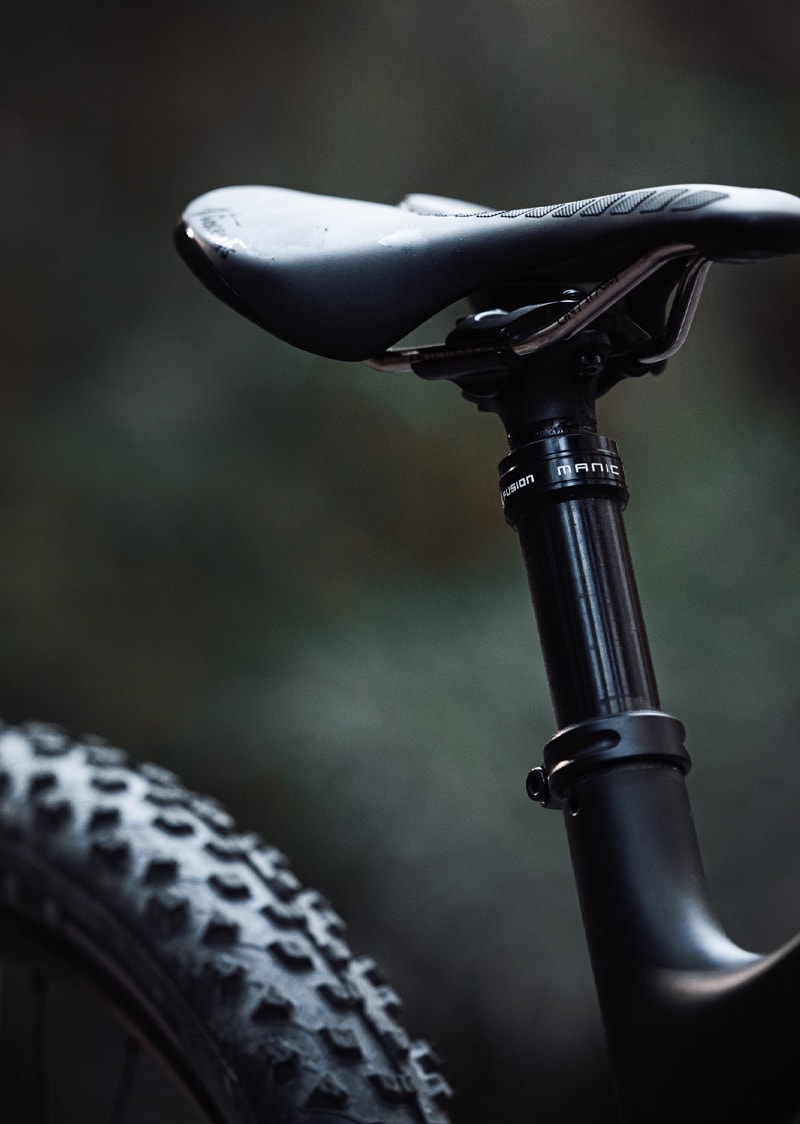

With a dropper post as standard, you can quickly lower the saddle with a simple button press on the handlebar.
Frame
MB31 Discovery / Carbon front triangle / Aluminium rear triangle / Tapered head tube / Threaded bottom bracket / Boost 148 / Mounts for bottlecage: 1 / UDH Universal Derallieur Hanger
Fork
ROCKSHOX Revelation RC / 130mm / Boost110 / 42mm offset
Rear Shock
ROCKSHOX Deluxe Select+ / 185x50
Shock
X-Fusion 02 PRO RL / 185x50 Trunnion / 130 mm
Wheels
DT Swiss M1900 Spline - 30mm, tubeless ready, DT Champion straightpull spokes, DT 370 Ratchet LN 18 hub
Tires
Vittoria Barzo Graphene 2,35"
Shift Lever
Shimano Deore M6100 / 12-speed
Rear Derailleur
Shimano Deore M6100 / 12-speed
Crankset
Shimano Deore FC-M6120 / 32T / 170mm strl S-M 175mm strl L-XL
Bottom Bracket
Shimano BB-MT800 threaded
Cassette
Shimano Deore M6100 / 10-51T / 12-speed
Chain
Shimano Deore M6100 / 12-speed
Pedals
Purchased separately
Brakes
Shimano Deore M6100 - Hydraulic disc brake, front: 180mm / rear: 160mm
Saddle
Vincents Evo Ti
Seattube
X-fusion manic dropperpost / 125mm drop strl. S/M / 150mm drop strl. L/XL / 30,9mm
Handlebar
FSA Grid / 800mm / 20mm rise / 8° backsweep / 5° upsweep
Stem
FSA Grid / 50mm / 6°
Headset
VINCENTS - 1 1/8" / 1,5"
Grips
Vincents
Weight
Sizr L - approx 14,1 kg
Maximum weight
This bike has a recommended maximum weight of 120 kg
Changes in the technical specifications may occur without prior notice due to final sale & other factors.
| S 154 - 166 | M 162 - 175 | L 173 - 185 | XL 180 - 195 | |
| A. Headtube height | 115 | 125 | 140 | 150 |
| B. Toptube length | 582 | 604 | 625 | 660 |
| C. Reach | 434 | 454 | 475 | 504 |
| D. Stack | 602 | 613 | 626 | 635 |
| E. Headtube angle | 65° | 65° | 65° | 65° |
| F. Seattube length | 400 | 410 | 440 | 470 |
| G. Chainstay length | 430 | 430 | 430 | 430 |
| H. Seattube angle | 76,3° | 76,3° | 76,3° | 76,3° |
| I. BB-drop | 31 | 31 | 31 | 31 |
| J. Wheelbase | 1186 | 1211 | 1237 | 1272 |
| K. Standover height | ||||
| Fork length | 540 | 540 | 540 | 540 |
All measurements are in millimeters unless otherwise specified.
