Frame
Allebike Excalibur FS / Carbon fiber / Mounts for bottlecages: 2
Fork
DT Swiss F232 One / 110mm / 44mm offset / Remote lockout
Shock
DT Swiss R232 One / 165x40 trunnion / Remote lockout
Wheels
DT Swiss XRC 1700 / 30mm / DT 350 nav / Carbon fiber
Tires
Vittoria Mezcal XC Race 29 x 2,4"
Shift Lever
SRAM AXS Pod Controller
Rear Derailleur
SRAM GX Eagle Transmission / 12s
Crank
SRAM GX Eagle Transmission DUB
Bottom Bracket
SRAM DUB Pressfit
Cassette
SRAM XS-1275 Eagle Transmission / 10-52T / 12s
Chain
SRAM GX Eagle Transmission Flattop / 12s
Brakes
SRAM Level Silver Stealth / Hydraulic Discbrake / Centerline 160mm
Sadedle
Selle Italia SLR Boost / MN
Seatpost
BikeYoke Revive Three / 30,9mm / Dropperpost
Handlebar
FSA KFX Flat Carbon / 760mm
Stem
Allebike
Headset
FSA 80/56/CR II System Dual
Grips
Vincents Silicon
Pedals
Purchased separately
weight
Ca
Maximum weight
This bike has a recommended maximum weight of 120kg.
Changes to the technical specifications may occur without notice due to end-of-line sales & other factors.

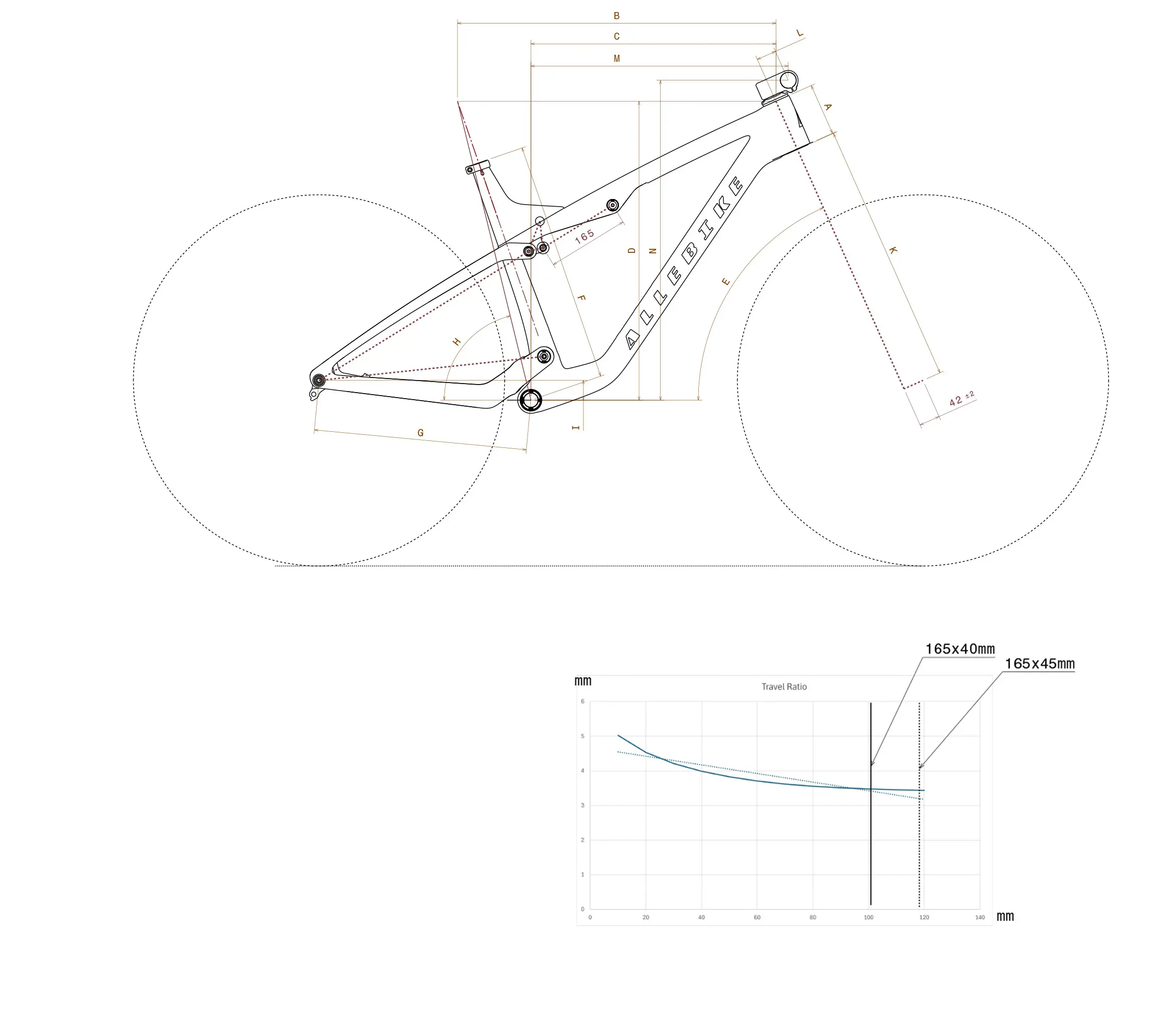

| S 155-167 | M 165 - 177 | L 175 - 187 | XL 185 - 196 | |
| A. Headtube height | 88 | 88 | 106 | 106 |
| B. Toptube length | 604 | 604 | 643 | 643 |
| C. Reach | 461 | 461 | 495 | 495 |
| D. Stack | 588 | 588 | 604 | 604 |
| E. Headtube angle | 66° | 66° | 66° | 66° |
| F. Seattube | 440 | 440 | 490 | 490 |
| G. Chainstay length | 430 | 430 | 430 | 430 |
| H. Seattube angle | 76,3° | 76,3° | 76,2° | 76,2° |
| I. BB drop | 40 | 40 | 40 | 40 |
| J. Wheelbase | 1179 | 1179 | 1220 | 1220 |
| K. Fork Length | 530 | 530 | 530 | 530 |
| L. Stem length | 40 | 60 | 40 | 60 |
| M. IRL Reach | 486 | 504 | 520 | 538 |
| N. IRL Stack | 630 | 638 | 646 | 654 |
All mesaurements are designated in MM unless otherwise is stated.
